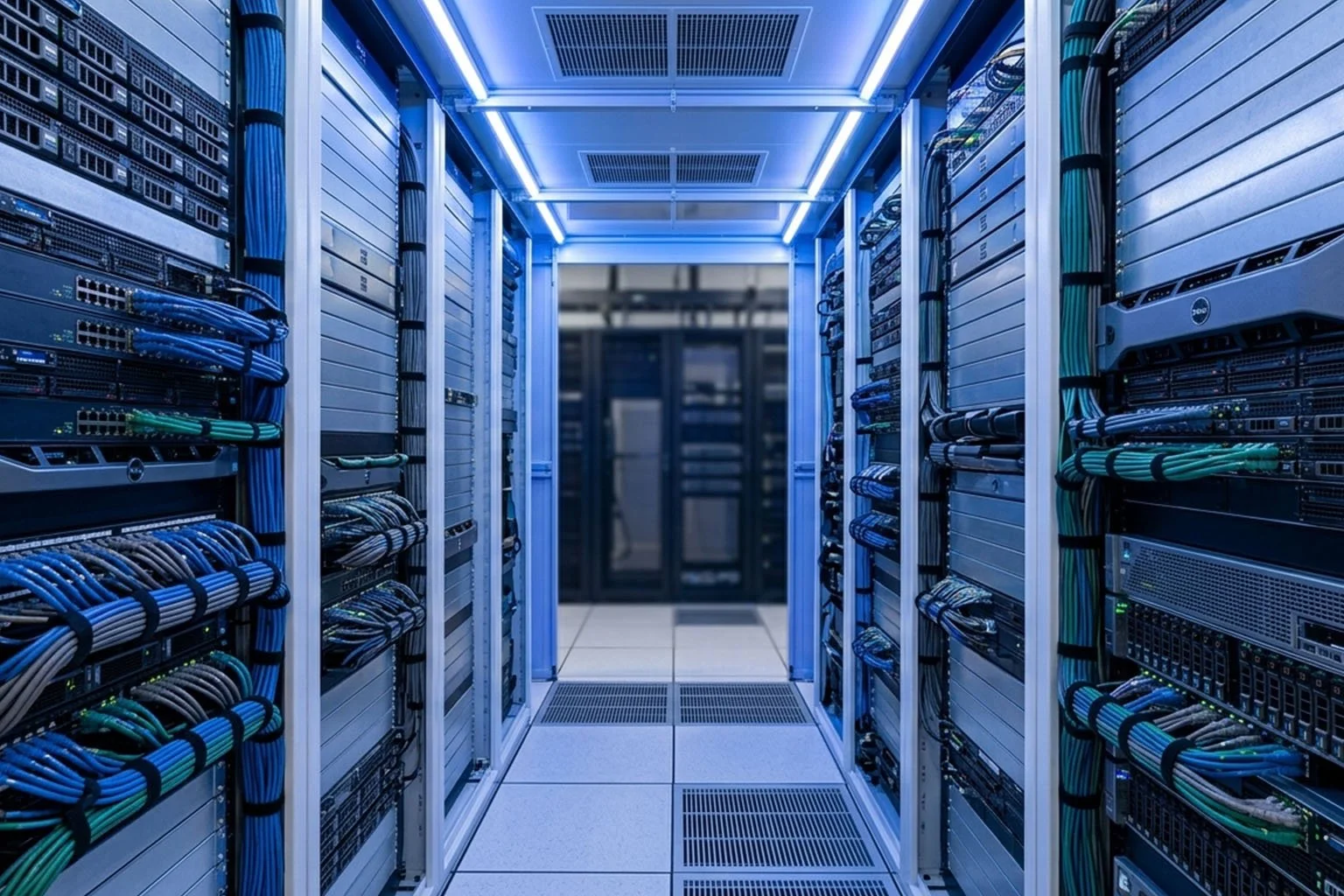

Racks: The Foundation of Every Data Center
Before a single workload runs, before a cable carries data, before the network breathes, someone has to physically build the infrastructure. That process is called rack and stack, and doing it right is the difference between a data center that hums along for decades and one that becomes an operational nightmare.
What Is Rack & Stack?
Rack and stack refers to the physical installation of IT equipment, servers, switches, storage arrays, patch panels, power distribution units, into standard 19-inch equipment enclosures. The name is literal: you mount (rack) the equipment and layer (stack) it in the correct order.
Poor rack and stack decisions compound over the life of the infrastructure. Bad airflow, tangled cabling, and overloaded circuits don't announce themselves on day one, they surface months or years later, during a maintenance window or a 2 a.m. incident. A data center built right the first time rewards operators with years of clean, efficient operations.
A standard equipment rack is 19 inches wide and measured in rack units (U). One rack unit equals 1.75 inches. A typical floor-standing cabinet is 42U, roughly 73.5 inches of usable vertical space. Every piece of equipment you put in it is sized in rack units: servers, patch panels, switches, PDUs, UPS systems.
The Five-Phase Process
Professional rack and stack follows a disciplined sequence. Improvising the order, or skipping steps, creates cable chaos, airflow problems, and equipment that's nearly impossible to service later.
Phase 1
Planning & Documentation
Work begins before anything is unboxed. Technicians review the rack elevation diagram, which maps every piece of equipment to its assigned rack unit position. Each device gets an asset tag, an IP or IPMI address, and a port assignment on the patch panel and top-of-rack switch.
Power budgets are verified at this stage. Every device draws a known wattage, and the cumulative load per rack must stay within the capacity of the PDUs and upstream circuit breakers. Overloading a circuit is a common, costly mistake, and an entirely preventable one.
Phase 2
Physical Installation Sequence
Equipment goes in a deliberate order so cables can be managed, airflow maintained, and no component blocks access to another.
Patch Panels go in near the top first, they're the termination point for structured cabling runs, and installing them before servers crowd the space makes everything easier. Top-of-Rack (ToR) Switches follow immediately below, minimizing the length of inter-rack patch cables. Cable Management Arms go in next; retrofitting cable management in a full rack is painful and almost always results in compromised airflow.
Then come Servers and Compute, racked top-down within their assigned zone, with rail kits installed first and chassis slid in and secured. Storage Arrays get seated in designated positions with drives inventoried per the storage controller's layout map. PDUs mount vertically along the rear or sides, redundant deployments use two PDUs per rack on separate A-side and B-side circuits so every device has dual independent power feeds. UPS units, when local to the rack, go at the bottom due to battery weight.
Finally: Blanking Panels fill every unused rack unit. This isn't cosmetic, it's an airflow management decision. Without blanking panels, hot exhaust air recirculates from the hot aisle back through empty rack space into the cold aisle intake, raising inlet temperatures and driving up cooling costs.
Phase 3
Power Cabling
Power cables are run from each device to the appropriate PDU outlet. In a well-designed deployment, cables are color-coded, black for A-side, gray or white for B-side, so it's immediately obvious whether dual-corded devices are correctly split across independent circuits. Cable lengths are matched to reach their outlet with minimal excess slack; bundled excess power cable is a common and underappreciated cause of restricted airflow.
Phase 4
Network Cabling & Patching
With power verified, network cables are run and patching begins. This is where the quality of the entire deployment becomes most visible. See the patching section below.
Phase 5
Labeling & Documentation Update
Every port, cable, device, and rack position is labeled. Port labels match the patch panel schedule. Asset tags are scanned and associated with rack positions in the DCIM system. The rack elevation diagram is updated to reflect the as-built state. This documentation becomes the system of record for every future move, add, or change, and it needs to be accurate from day one, not reconstructed from memory after the fact.
Patching
Patching is the act of connecting equipment ports using structured cabling, copper (Cat6A, Cat6) or fiber (OM4, OS2), through patch panels. Done correctly, it creates a clean, traceable, serviceable network. Done sloppily, it creates a dense, unmanageable mess that frustrates every future technician who touches the rack.
Patch Panel Architecture
Patch panels serve as the permanent termination point for horizontal cabling runs. Instead of running long cables directly from a server NIC to a switch port, which turns every cable move into a major project, the infrastructure is split: a fixed, permanent structured cabling run from patch panel to switch, and a short patch cable from the patch panel front port to the device.
When a server needs to be re-cabled to a different switch port, only the short patch cable moves. The underlying structured cabling stays in place. This design philosophy, "moves, adds, and changes" (MAC), is the foundation of maintainable network infrastructure.
Naming Conventions
Every port should follow a consistent naming scheme. A common format encodes the location hierarchy into the label itself: DC1-ROW-C-RACK-04-PP-01-P12 decodes as Data Center 1, Row C, Rack 04, Patch Panel 01, Port 12. When a technician is tracing a fault at 2 a.m., that label is the difference between a 5-minute fix and a 2-hour war story.
Port-to-port connectivity lives in a cable schedule, a spreadsheet or DCIM record mapping each cable's A-end to its B-end, cable type, length, and color. Without it, the cable plant becomes a black box.
Fiber: Polarity and End-Face Cleanliness
Fiber adds a concern copper cabling doesn't have: polarity. The transmit fiber from one device must connect to the receive port of the remote device. Get it wrong and the link simply doesn't come up, with no error message pointing to the cable. Fiber polarity is one of the most frustrating problems to debug for those unfamiliar with it.
Fiber end-face contamination is the leading cause of fiber link failures. A single fingerprint on an LC connector can attenuate a signal enough to drop the link at higher data rates. Every fiber connection in a production environment should be cleaned with a one-click fiber cleaner before insertion and inspected with a fiber inspection probe (FIP). It takes 30 seconds and prevents hours of troubleshooting.
Cable Dressing
Patch cables should be dressed, organized, routed cleanly, and secured, not plugged in and left to sprawl. Bend radii must be respected, especially for fiber (minimum 30mm). Individual cables should be traceable without disturbing adjacent cabling.
Cable length matters more than most people think. A 10-foot patch cable where a 3-foot cable would work creates excess slack that blocks airflow and makes the rack harder to service. Most professional deployments stock standard lengths (1ft, 2ft, 3ft, 5ft, 7ft, 10ft) and select the shortest cable that reaches its destination with a 6–12 inch service loop.
The Principles That Separate Good Deployments from Costly Ones
Airflow first. Design cold-aisle/hot-aisle containment before a single server goes in. All equipment faces the same direction, intake at the front, exhaust at the rear. Blanking panels in every empty U. Airflow problems are invisible until you're measuring elevated inlet temperatures and troubleshooting thermal throttling.
Document as you go. Don't plan to update documentation after the deployment, update it during. Asset tags, port schedules, and rack elevation diagrams should reflect reality the moment a cable is seated or a device is racked. Documentation written from memory after the fact is always incomplete.
Redundancy by design. Dual power (A/B), dual NICs on separate switches, redundant cooling paths, these must be designed in from the start. Retrofit redundancy is expensive and disruptive. Color-code power cables and verify A/B splits before anything powers on.
Label everything. Both ends of every cable. Every port on every patch panel. Every device. Every power outlet. If it isn't labeled, it effectively doesn't exist, the next person to touch it will have to rediscover it from scratch, under pressure, during a service event.
Right cable, right length. Match cable type to link speed and distance. Use the shortest patch cable that fits. Avoid coiling excess cable. Budget for a range of lengths rather than ordering a single length for everything.
Inspect fiber connectors. Clean before every connection. Inspect with a fiber probe. Establish it as a non-negotiable step in the deployment procedure.
The Long Game
Rack and stack is physical, methodical, and detail-intensive. But its effects persist for years, sometimes decades. A data center built with discipline, careful documentation, and thoughtful cable management is one that operators can actually work in, that absorbs growth, and that doesn't generate a constant stream of avoidable incidents.
The opposite is also true. Data centers built in haste, without standards, without documentation, and without attention to fundamentals like airflow and power redundancy become burdens. They resist change, hide faults, and create technical debt that compounds with every new device added to the mix.
The rack is where the data center begins. How well it begins determines everything that follows.
